JTTR3010F SH725

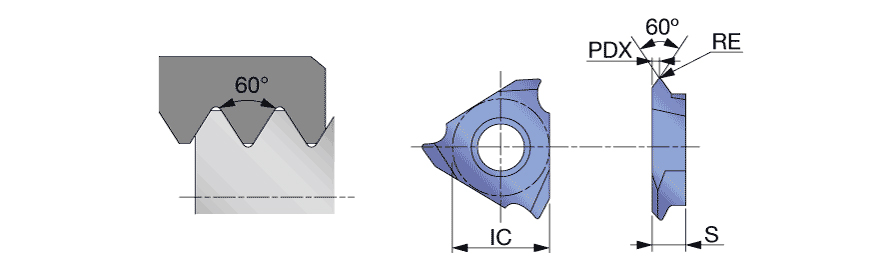

External 60 deg, Partial profile, Pitch 0.5 to 1 mm
| Corner Radius (RE) | 0.1 mm | Thread Pitch Minimum (TPN) | 0.5 mm |
| Insert Thickness (S) | 3.18 mm | Thread Pitch Maximum (TPX) | 1 mm |
| Inscribed Circle Diameter (IC) | 9.525 mm | Tool Type | Threading Regular Inserts |
| Grade | SH725 | Threads per Inch Maximum (TPIX) | 48 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | External 60 deg, Partial profile, Pitch 0.5 to 1 mm | FamilyName | JTTR/L |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0550
Name

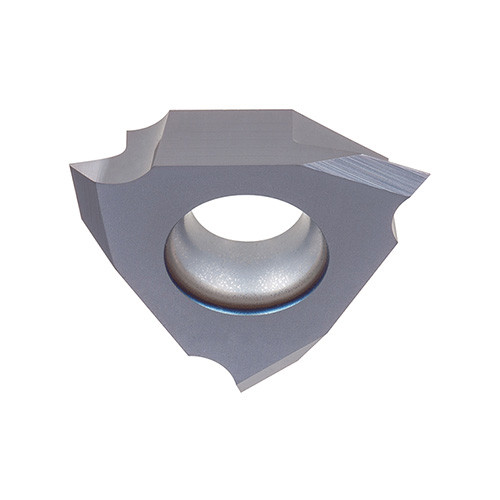

On-Edge Threading Indexable Inserts
FamilyName
JTTR/L
BrandName
Tungaloy
