TNMA43NT6PEXT-PT AH725

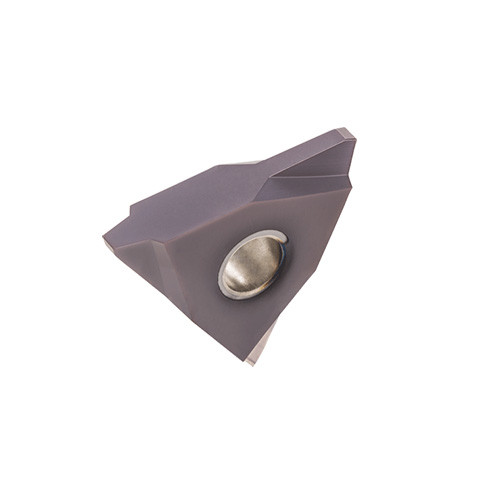

External on edge inserts for ACME (29deg Trapezoid), partial topping, applicable on multi-clamp toolholders

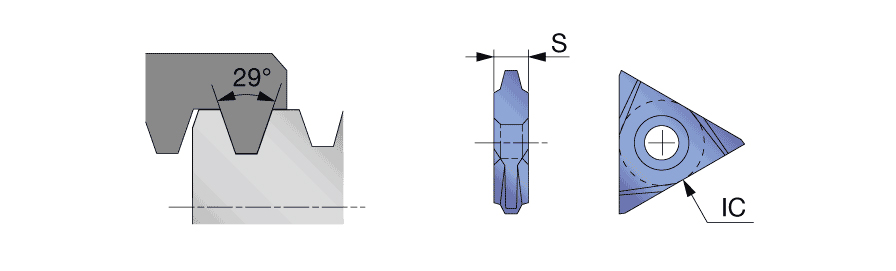

| Thread Pitch (TP) | 4.233 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 6 | Application | | Inserts | |
| Insert Thickness (S) | 4.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Grade | AH725 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | External on edge inserts for ACME (29deg Trapezoid), partial topping, applicable on multi-clamp toolholders | FamilyName | TNMA43/54NT_PPT |
| COO | USA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1310
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMA43/54NT_PPT
BrandName
Tungaloy
