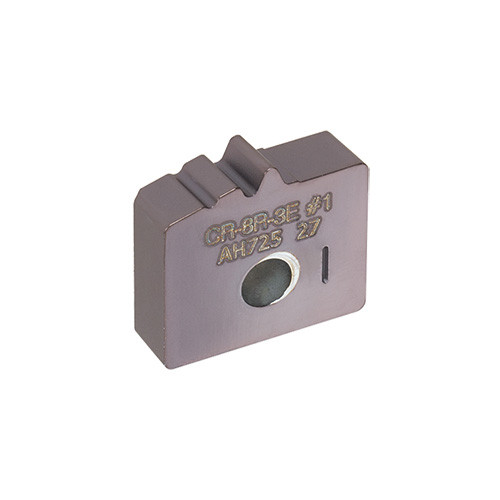

CR-8R-3E#3 AH725
External chaser inserts for API Round, applicable on rotating tools

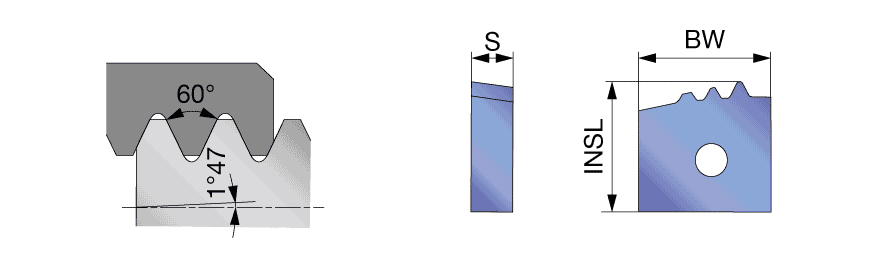

| Thread Pitch (TP) | 3.175 mm | Application | | Inserts | |
| Threads per Inch (TPI) | 8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 5.2 mm | Measurement Type | Metric |
| Grade | AH725 | Body Material | Carbide |
| Coating | TiAlN | Insert Length (INSL) | 15 mm |
| Cutting Edge Material | Carbide | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External chaser inserts for API Round, applicable on rotating tools | FamilyName | CR-R-E#1_3 |
| Remarks | Note: Toolholder should be designed and ordered individualy. | BrandName | Tungaloy |
| COO | USA |
Shipping Info
Weight per item
0.1500
Name
On-Edge Threading Indexable Inserts
FamilyName
CR-R-E#1_3
BrandName
Tungaloy
