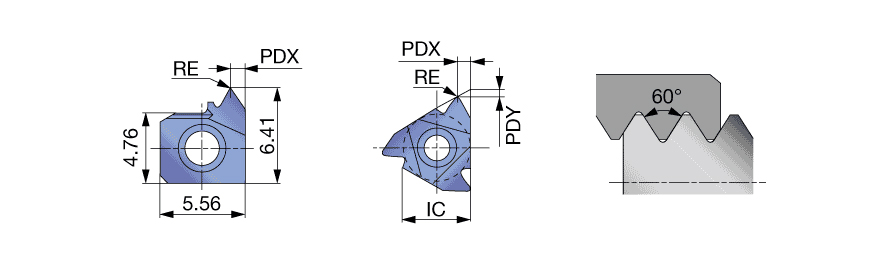

| Inscribed Circle Diameter (IC) | 6.35 mm | Threads per Inch Minimum (TPIN) | 16 |
| Corner Radius (RE) | 0.04 mm | Threads per Inch Maximum (TPIX) | 48 |
| Grade | AH725 | Thread Pitch Minimum (TPN) | 0.5 mm |
| Coating | TiAlN | Thread Pitch Maximum (TPX) | 1.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Cutting Item Count (CICT) | 3 | Profile Distance EY (PDY) | 0.7 mm |
Product Features
| Family Description | Internal 60deg, Partial profile | FamilyName | IR/L-60 |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0200
Name

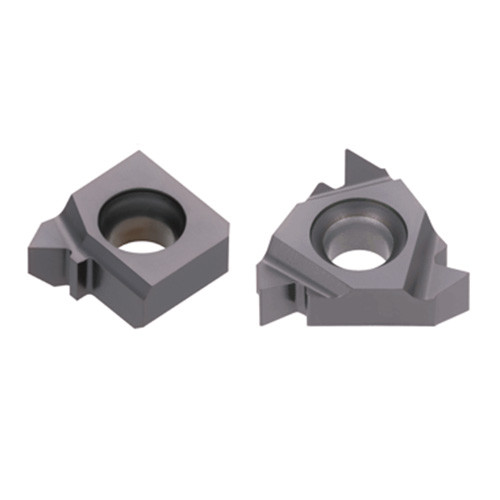

Laydown Threading Indexable Inserts
FamilyName
IR/L-60
BrandName
Tungaloy
