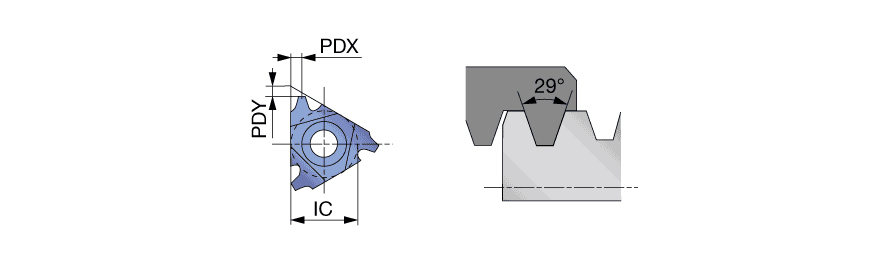

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 4.233 mm | Cutting Item Count (CICT) | 3 |
| Threads per Inch (TPI) | 6 | Tool Type | Threading Regular Inserts |
| Grade | T313V | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Inserts | | Profile Distance EY (PDY) | 2 mm |
Product Features
| Family Description | External 29degTrapezoidal (ACME) | FamilyName | ER/L-ACME |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0730

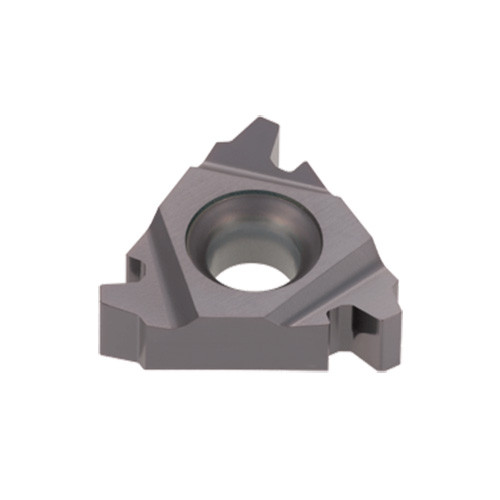

Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-ACME
BrandName
Tungaloy
