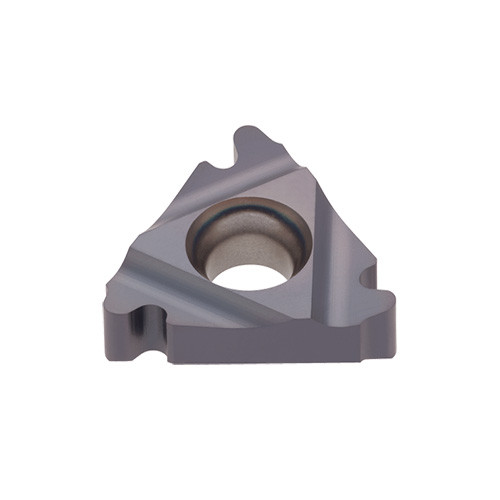

16IR6RD-B AH725
Internal Round (DIN405), full-profile inserts

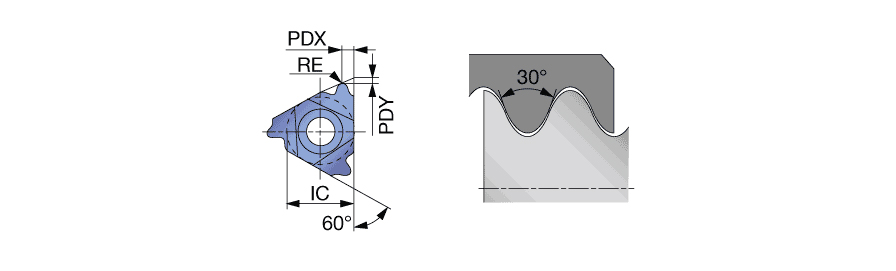

| Inscribed Circle Diameter (IC) | 9.525 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 4.233 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 6 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.94 mm | Tool Type | Threading Regular Inserts |
| Grade | AH725 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Inserts | | Profile Distance EY (PDY) | 1.4 mm |
Product Features
| Family Description | Internal Round (DIN405), full-profile inserts | FamilyName | IR/L-RD |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0330
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-RD
BrandName
Tungaloy
