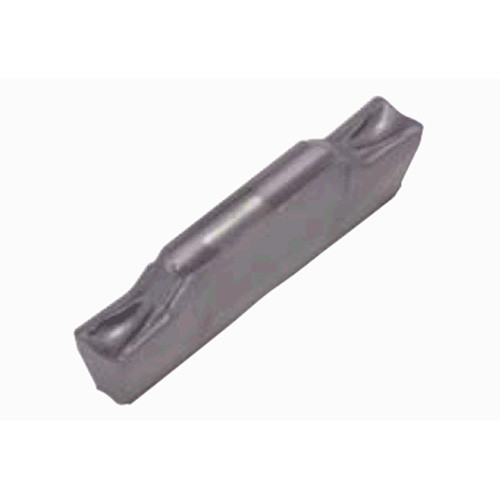

DTX3-030 NS9530
Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.05mm

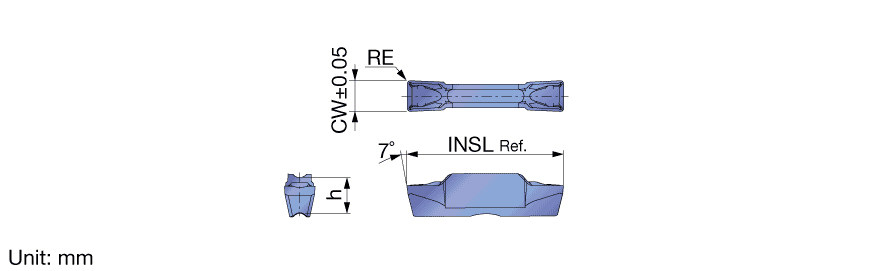

| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.3 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 18.5 mm | Number of Cutting Edges | 2 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | NS9530 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.05mm | FamilyName | DTX |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0250
Name
Groove/Turn Indexable Inserts
FamilyName
DTX
BrandName
Tungaloy
