VGP10-075F-005 SH725
Grooving insert with 2 cutting edges, sharp edge

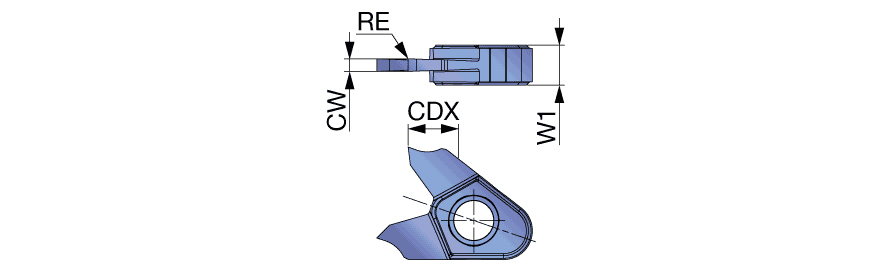

| Cutting Width (CW) | 0.75 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.05 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 3 mm | Measurement Type | Metric |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | SH725 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Grooving insert with 2 cutting edges, sharp edge | FamilyName | VGP |
| Remarks | Max grooving depth varies depending on workpiece diameters. For Max grooving depth, click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
VGP
BrandName
Tungaloy
Related Documentation

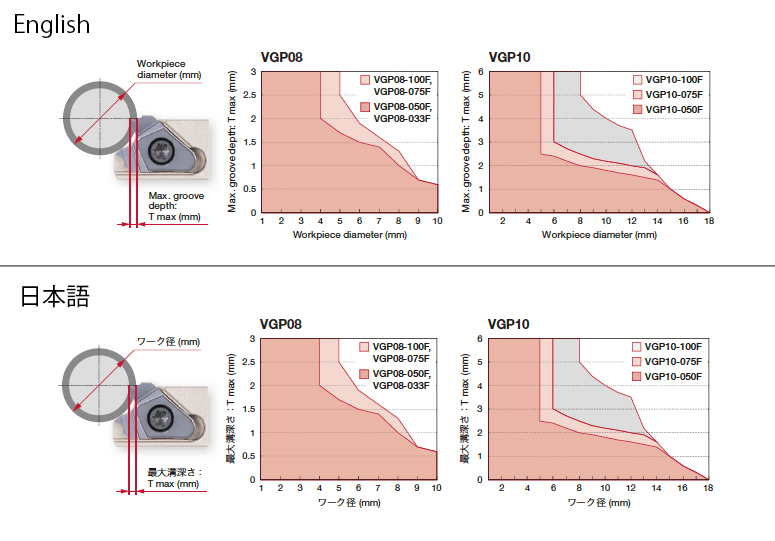

Note: Max grooving depths vs workpiece diameters @To avoid tool interference with the workpiece, max grooving depths (T max) for the insert used may be smaller than the CDX values of insert depending on the workpiece diameter.
