DTR2S-100 AH7025

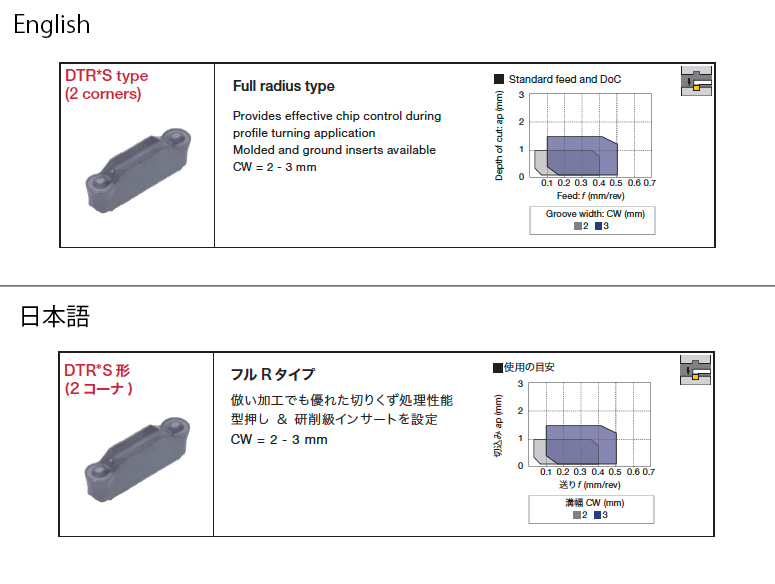

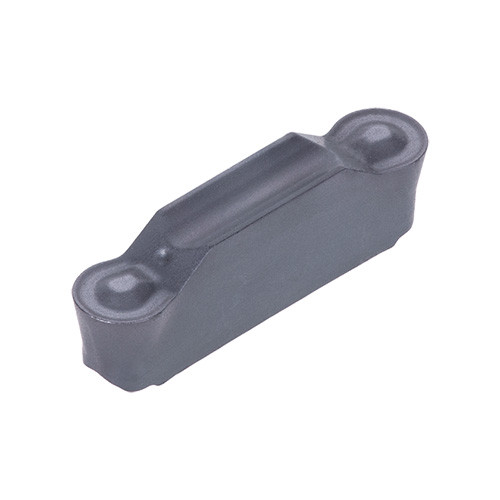

Full radius double-ended insert for profiling and undercutting, small-size insert

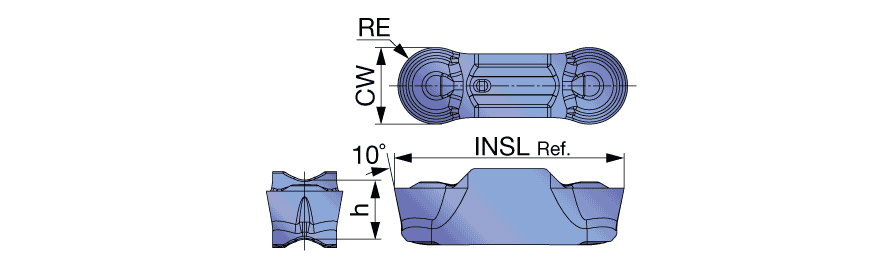

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 1 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 8 mm | Measurement Type | Metric |
| Coating | TiAlN | Tool Type | Groove-Turn Precision Inserts |
| Grade | AH7025 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Full radius double-ended insert for profiling and undercutting, small-size insert | FamilyName | DTR*S |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
DTR*S
BrandName
Tungaloy
