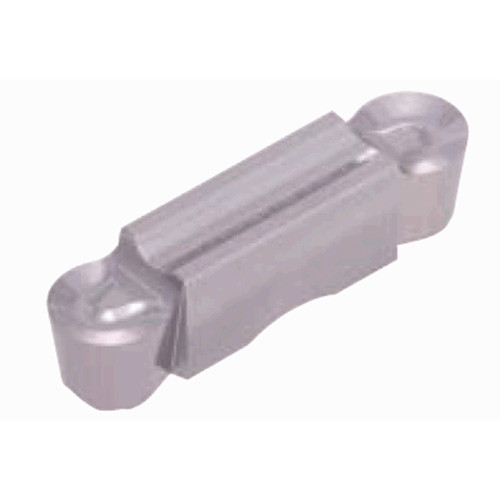

DTA800-400 TH10

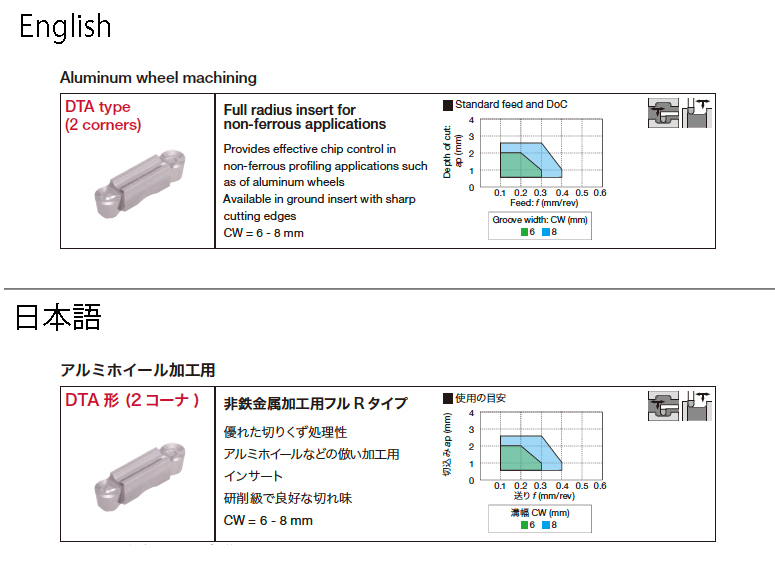

Full radius, precision double-ended inserts for machining aluminum wheel, tolerance of insert width +-0.02mm

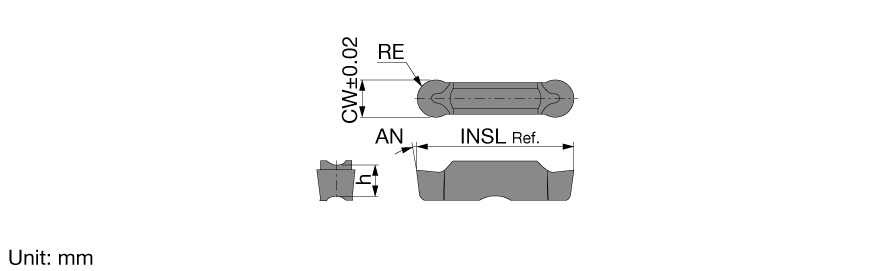

| Cutting Width (CW) | 8 mm | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 26 mm | Number of Cutting Edges | 2 |
| Clearance Angle Major (AN) | 10 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Grade | TH10 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Full radius, precision double-ended inserts for machining aluminum wheel, tolerance of insert width +-0.02mm | FamilyName | DTA |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.1980
Name
Groove/Turn Indexable Inserts
FamilyName
DTA
BrandName
Tungaloy
Related Documentation
Related Items
