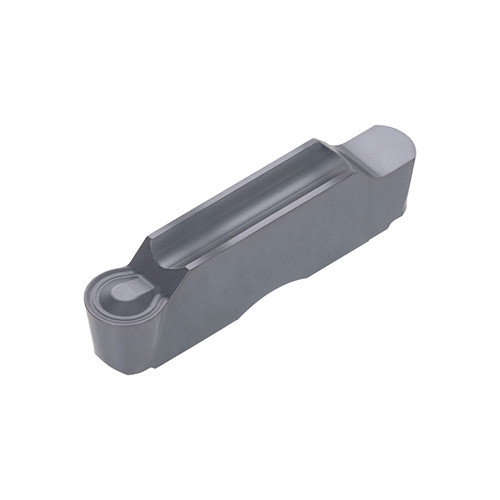

STR6-300 AH7025
Full radius single-ended insert for profiling & undercutting, tolerance of insert width +-0.05 mm
| Cutting Width (CW) | 6 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 3 mm | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH7025 | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | Full radius single-ended insert for profiling & undercutting, tolerance of insert width +-0.05 mm | FamilyName | STR |
| Remarks | For "Standard cutting conditions", click on "Product report". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
STR
BrandName
Tungaloy
