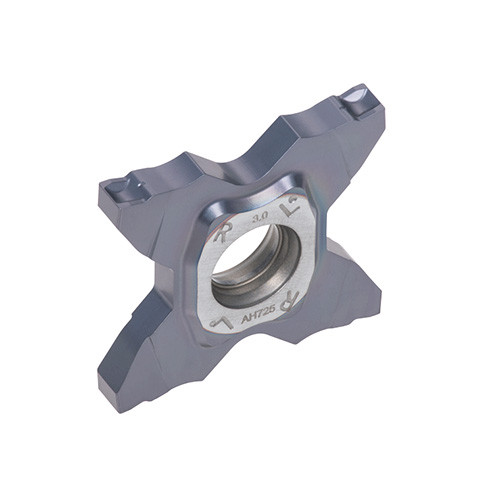

TCM27-150-010 AH725
Precision grooving and parting off inserts with 4 strong cutting edges for high efficiency machining

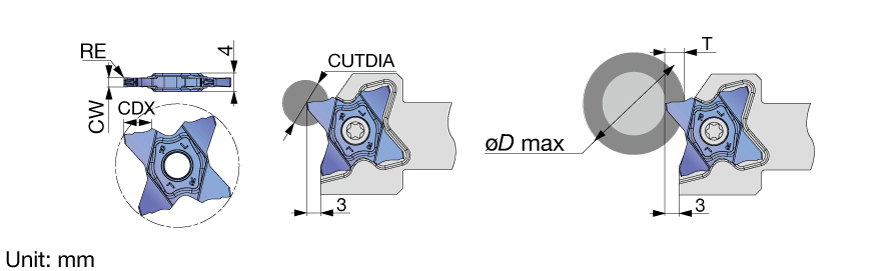

| Cutting Width (CW) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 11.4 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH725 | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Precision grooving and parting off inserts with 4 strong cutting edges for high efficiency machining | FamilyName | TCM27 |
| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "Product report". | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0730
Name
Parting Off Indexable Inserts
FamilyName
TCM27
BrandName
Tungaloy
