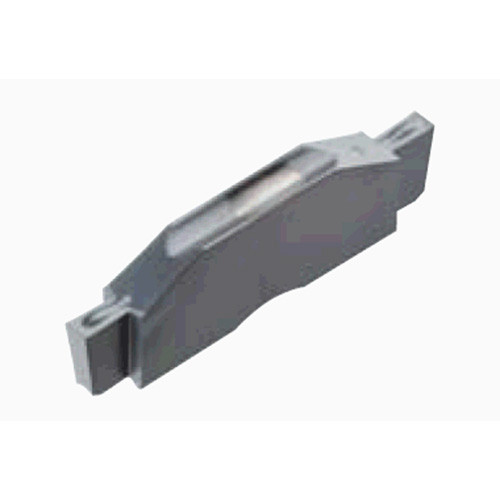

DGE100-000 NS9530
Precision double-ended inserts for external shallow grooving, tolerance of insert width +-0.02mm

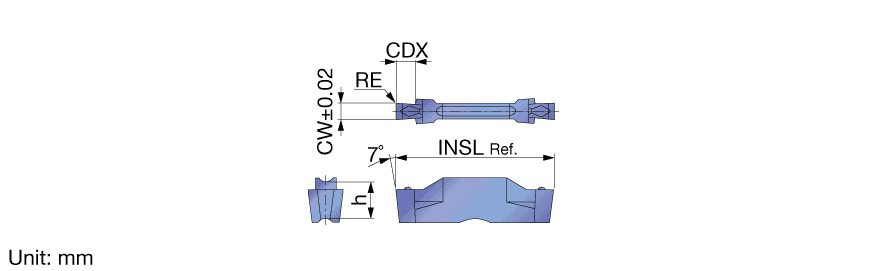

| Cutting Width (CW) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0 mm | Tool Type | Face Turn-Groove Inserts |
| Insert Length (INSL) | 20 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 4 mm |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | NS9530 | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Precision double-ended inserts for external shallow grooving, tolerance of insert width +-0.02mm | FamilyName | DGE |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0240
Name
Parting Off Indexable Inserts
FamilyName
DGE
BrandName
Tungaloy
Related Documentation

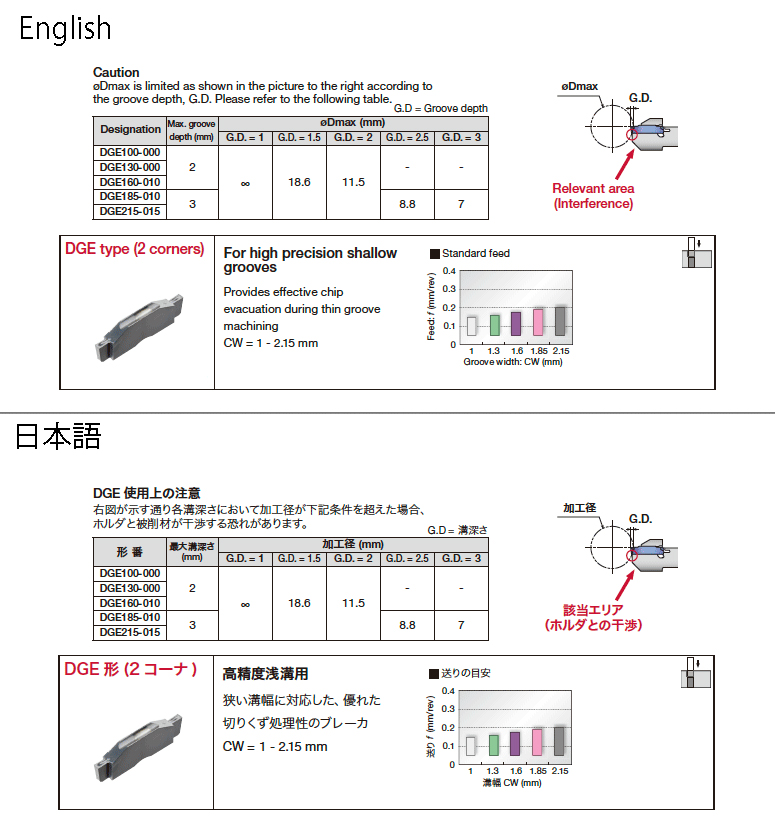

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax. Note that Dmax is limited according to the groove depth (T).
