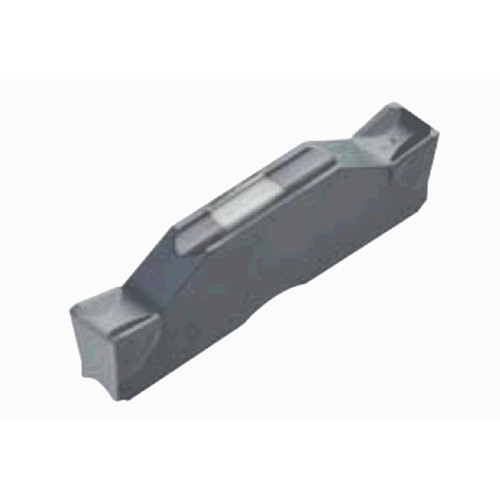

DGM2-020 AH725
Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.05mm

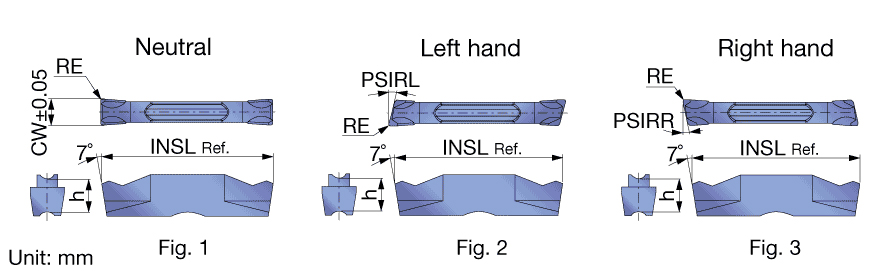

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Insert Length (INSL) | 20 mm | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 36 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH725 | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.05mm | FamilyName | DGM |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0340
Name
Parting Off Indexable Inserts
FamilyName
DGM
BrandName
Tungaloy
Related Documentation

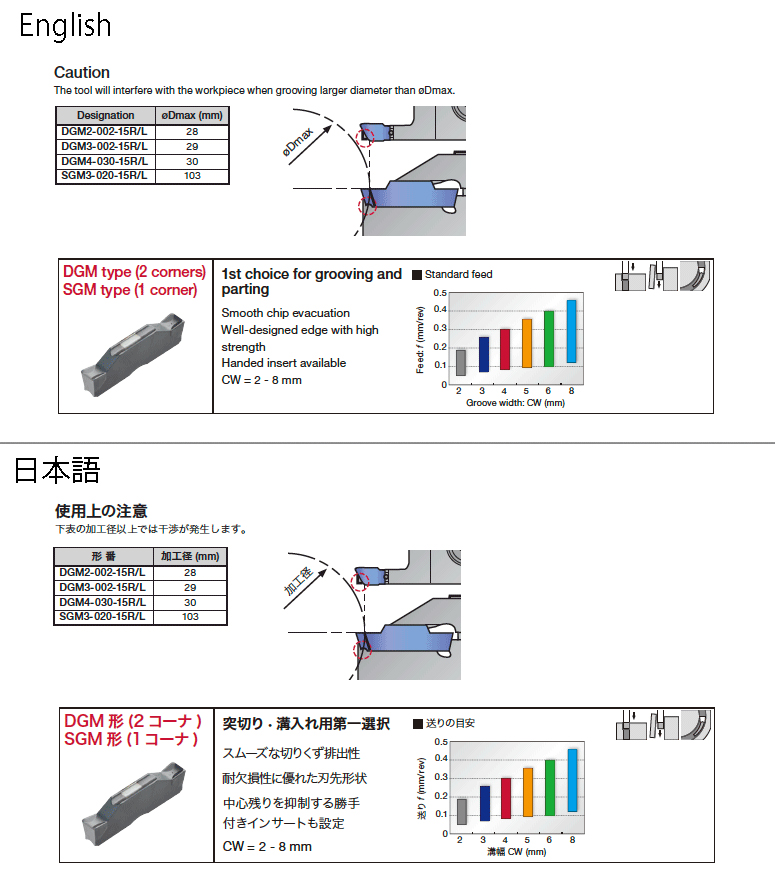

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
