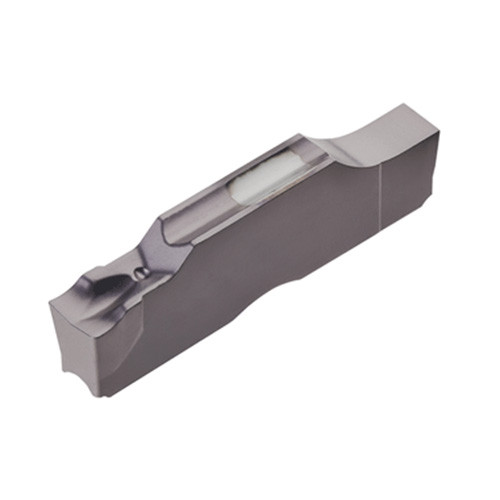

SGS3-020 KS05F
Single-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm

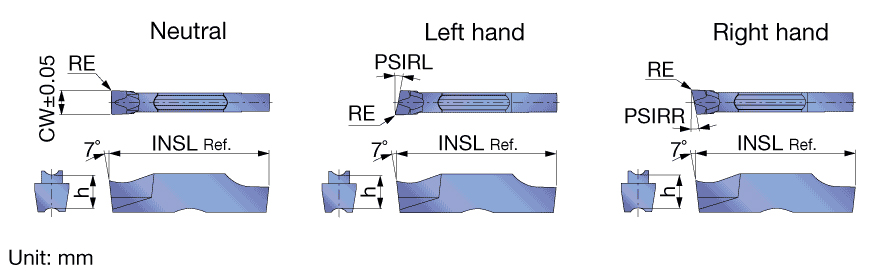

| Cutting Width (CW) | 3 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Insert Length (INSL) | 20 mm | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | KS05F | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Single-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.05mm | FamilyName | SGS |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Inserts
FamilyName
SGS
BrandName
Tungaloy
Related Documentation
Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
