JXPS12R15F SH725

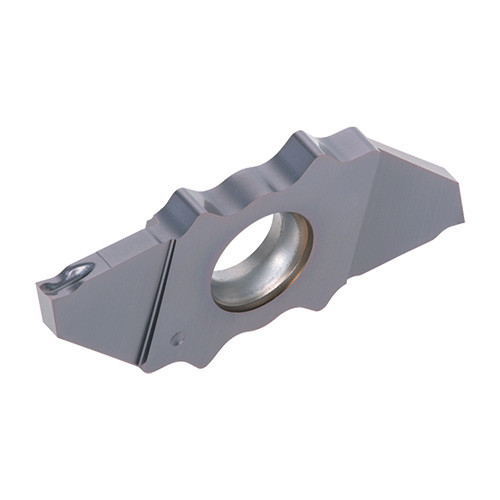

Double-ended insert for parting-off, with 3D chipbreaker, sharp cutting edge.

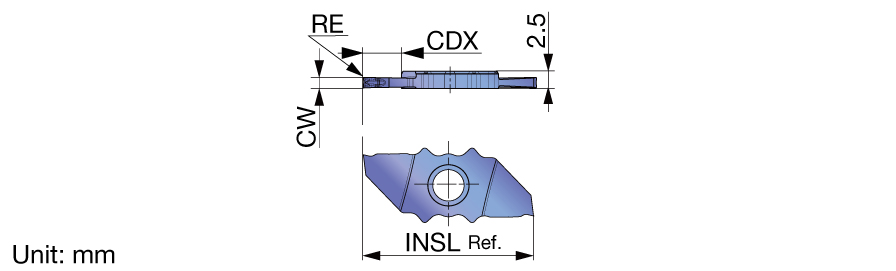

| Cutting Width (CW) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.05 mm | Tool Type | Parting & Grooving Inserts |
| Insert Length (INSL) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 12 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | SH725 | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Double-ended insert for parting-off, with 3D chipbreaker, sharp cutting edge. | FamilyName | JXPS**R/L-F |
| Remarks | Max grooving depth varies depending on workpiece diameters. For max grooving depth, click on "Product report". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Inserts
FamilyName
JXPS**R/L-F
BrandName
Tungaloy
