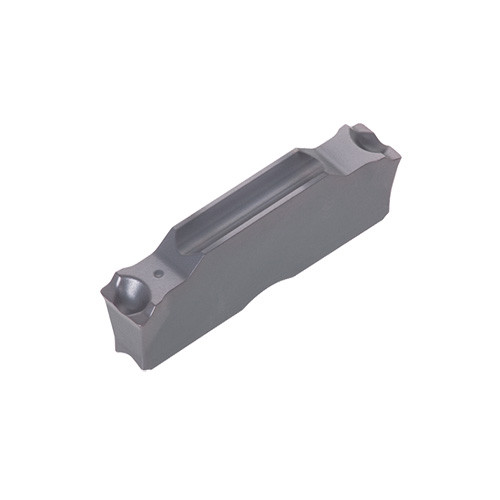

DGL3-025 AH7025

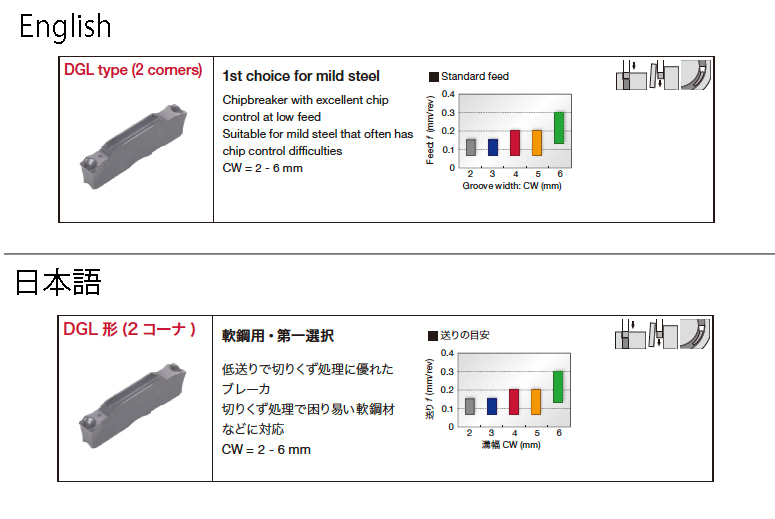

Double-ended inserts for external / face grooving & parting, 1st choice for low carbon steel, tolerance of insert width +/-0.05mm

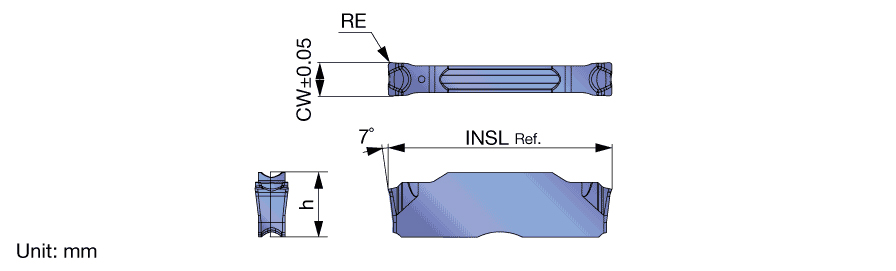

| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.25 mm | Tool Type | Face Turn-Groove Inserts |
| Insert Length (INSL) | 20 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 36 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH7025 | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Double-ended inserts for external / face grooving & parting, 1st choice for low carbon steel, tolerance of insert width +/-0.05mm | FamilyName | DGL |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Inserts
FamilyName
DGL
BrandName
Tungaloy
