TCG18R120-010 AH7025

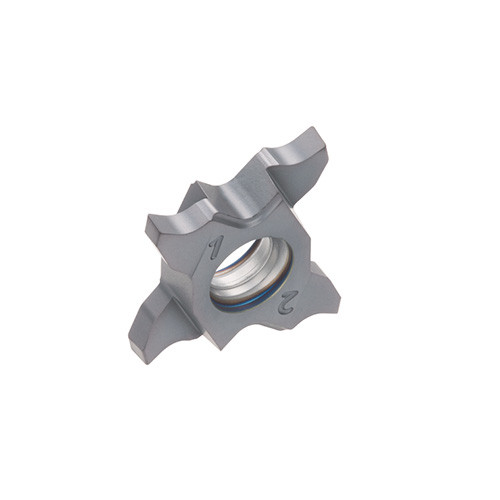

Precision grooving inserts with 4 honed edges

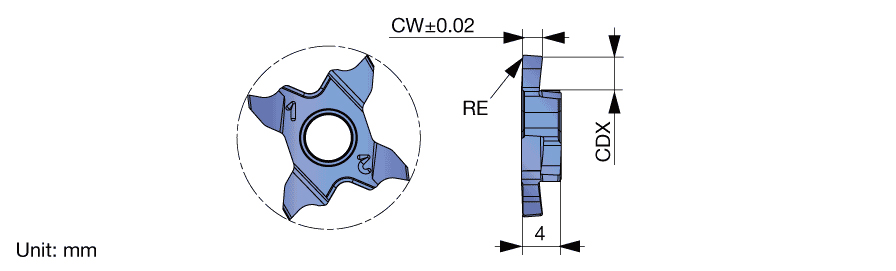

| Cutting Width (CW) | 1.2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 3 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH7025 | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | Precision grooving inserts with 4 honed edges | FamilyName | TCG18R/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0360
Name
Parting Off Indexable Inserts
FamilyName
TCG18R/L
BrandName
Tungaloy
