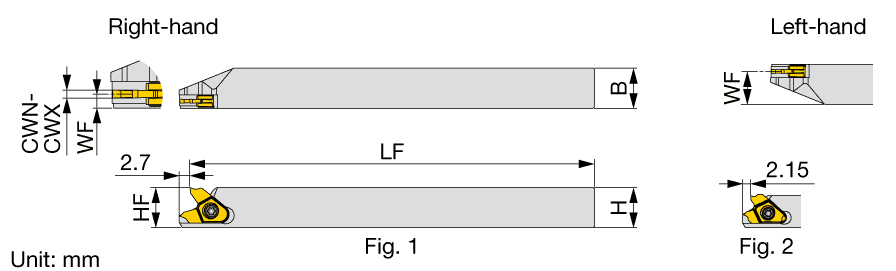

| Cutting Width Minimum (CWN) | 0.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.78 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Unit | M |
Product Features

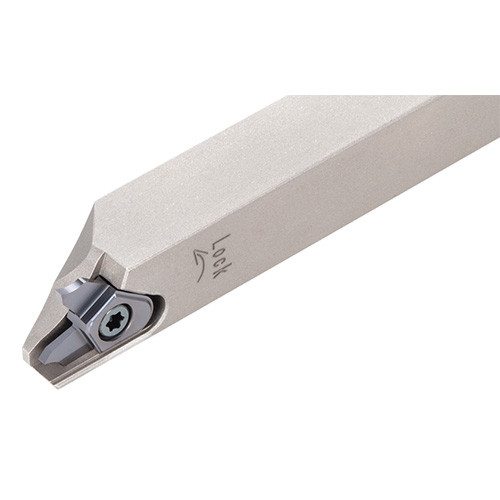

| Family Description | External grooving and threading toolholder | FamilyName | SVER/L |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
SVER/L
BrandName
Tungaloy
