| Cutting Width Minimum (CWN) | 0.256″ | Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Width Maximum (CWX) | 0.334″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 1.402″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 1-5/8″ | Body Material | Steel |
| Functional Width (WF) | 0.982″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 12″ | Measurement Type | Inch |
| Head Length (LH) | 2.559″ | Unit | I |
Product Features
| Family Description | Boring bar for Internal grooving & turning | FamilyName | CTIR/L |
| Remarks | For "DMIN (Minimum bore diameter)", click on "More Info". Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
CTIR/L
BrandName
Tungaloy
Related Documentation

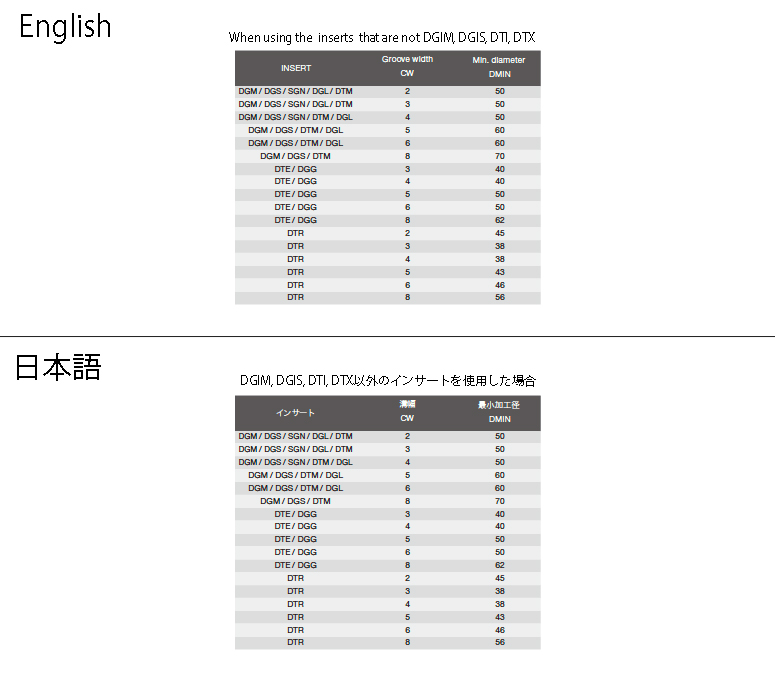

When using the inserts that are not DGIM, DGIS, DTI and DTX, insert geometry limits "DMIN (Minimum bore diameter)".
