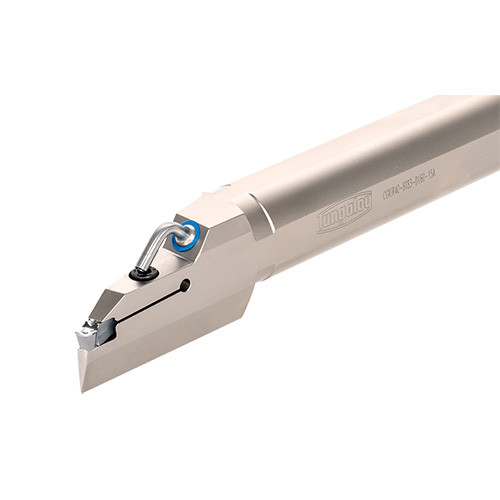

CGIUL40-8T83-D160-15A
Internal boring bar for machining aluminum wheel

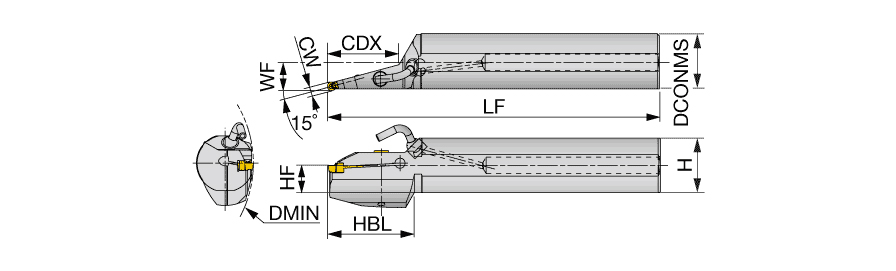

| Shank Height (H) | 38.5 mm | Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 160 mm | Application | | Internal grooving | |
| Functional Width (WF) | 20.5 mm | Body Material | Steel |
| Functional Length (LF) | 320 mm | Tool Type | Face Turning & grooving Tools |
| Head Length (LH) | 85 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
Product Features
| Family Description | Internal boring bar for machining aluminum wheel | FamilyName | CGIUR/L-15A |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
2.5400
Name
Groove/Turn Indexable Holders
FamilyName
CGIUR/L-15A
BrandName
Tungaloy
