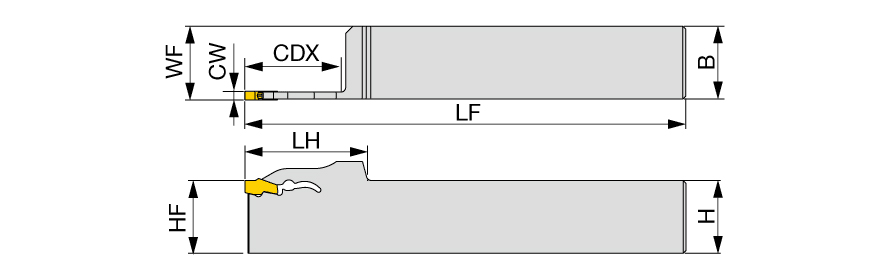

| Cutting Width Minimum (CWN) | 2.5 mm | Head Length (LH) | 42 mm |
| Cutting Width Maximum (CWX) | 3.49 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 33 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 25.3 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Unit | M |
Product Features
| Family Description | External toolholder for grooving and parting | FamilyName | QSER/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
QSER/L
BrandName
Tungaloy
