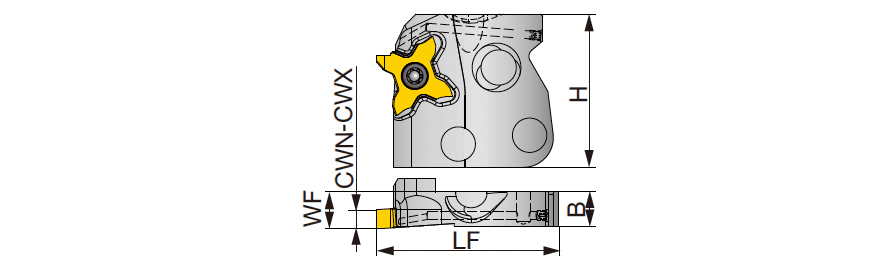

| Cutting Width Minimum (CWN) | 0.33 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 3.18 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 33 mm | Body Material | Steel |
| Shank Width (B) | 7.2 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 7.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 38 mm | Unit | M |
Product Features

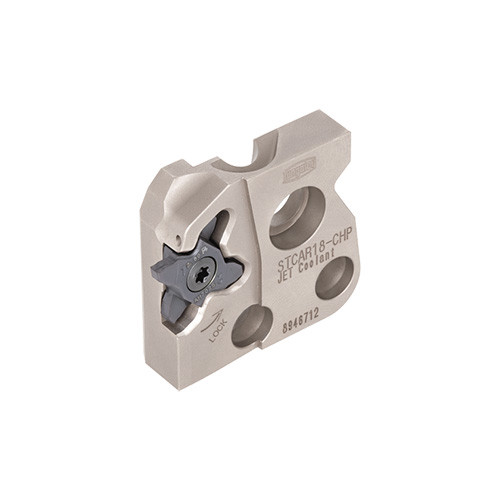

| Family Description | Modular blades for external grooving & threading, with high pressure coolant channels | FamilyName | STCAR/L18-CHP |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
STCAR/L18-CHP
BrandName
Tungaloy
