CTEFL2020-4T04

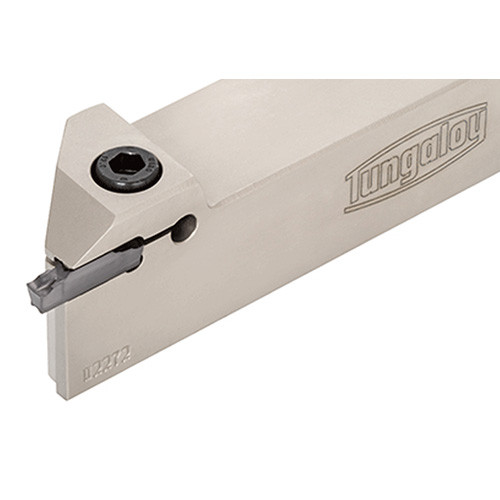

Toolholders for external / face grooving & turning

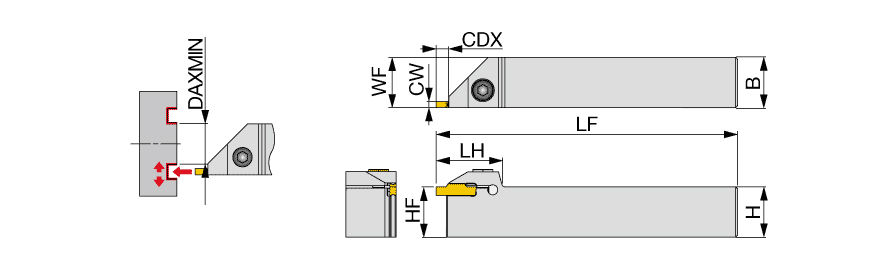

| Cutting Width Minimum (CWN) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 4.49 mm | Application | | External grooving | Face grooving | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 20.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm | Unit | M |
| Head Length (LH) | 33 mm |
Product Features
| Family Description | Toolholders for external / face grooving & turning | FamilyName | CTEFR/L |
| Remarks | See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.4150
Name
Groove/Turn Indexable Holders
FamilyName
CTEFR/L
BrandName
Tungaloy
Related Documentation
Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
