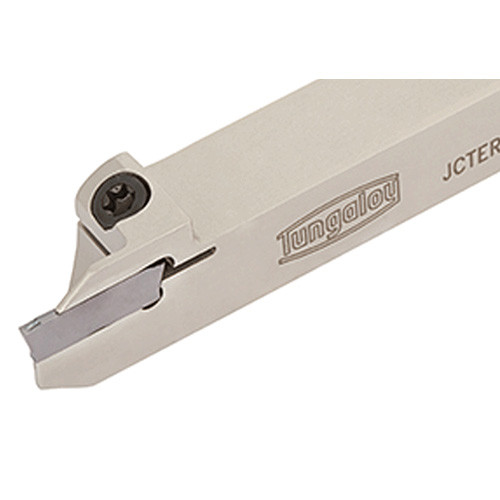

JCTER1616X2T16
External grooving & parting toolholders for small lathes

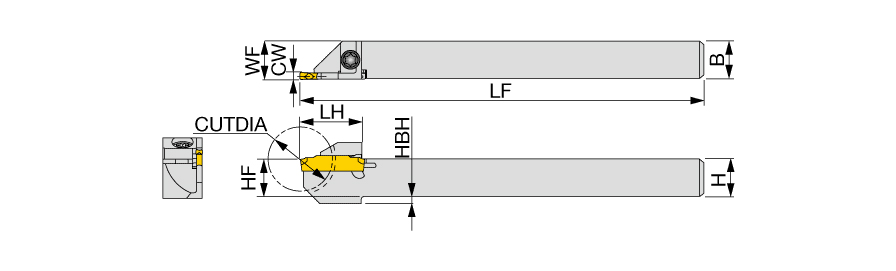

| Cutting Width Minimum (CWN) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 2.49 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 16.1 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm | Unit | M |
| Head Length (LH) | 24 mm |
Product Features
| Family Description | External grooving & parting toolholders for small lathes | FamilyName | JCTER/L |
| Remarks | See applicable inserts table. Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2490
Name
Groove/Turn Indexable Holders
FamilyName
JCTER/L
BrandName
Tungaloy
