ETTL25M017W25.0F026R02-PT

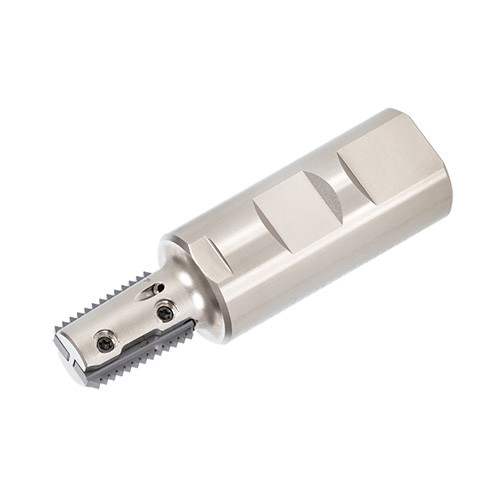

Indexable thread milling cutters, long edge

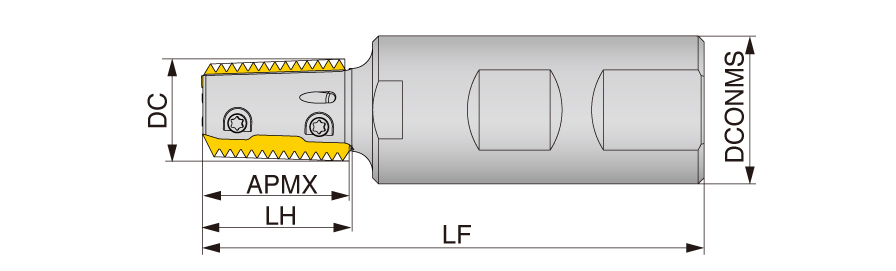

| Cutting Diameter (DC) | 17.47 mm | Application | | Ext. Thread Milling | Int. Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Tool Type | Indexable thread mills |
| Depth of Cut Maximum (APMX) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 85 mm | Cutting Item Count (CICT) | 2 |
| Master Insert Identification (MIID) | TL25SEIR14BSPT | Head Length (LH) | 25.5 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Indexable thread milling cutters, long edge | COO | JAPAN |
Shipping Info
Weight per item
0.0000
Related Documentation
