TID125L25A90M10

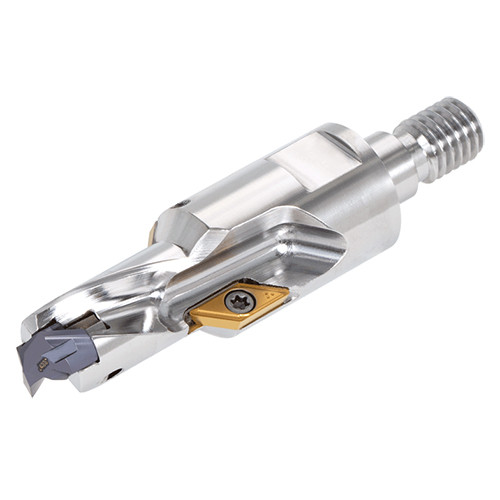

DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads
| Application | | Chamfering | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 12 | Master Insert Identification (MIID) | DMP125 |

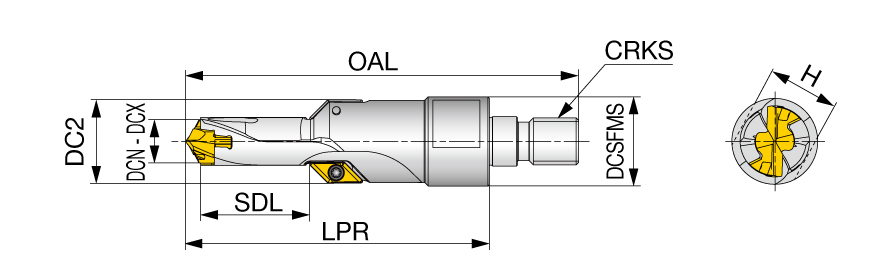

| Cutting Diameter Minimum (DCN) | 12.5 mm | Point Length (PL) | 1.91 mm |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Body Material | Steel |
| Overall Length (OAL) | 83.91 mm | Flange Diameter (DF) | 19 mm |
| Shank Length (LS) | 19 mm | Unit | M |
Product Features
| Family Description | DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads | COO | JAPAN |

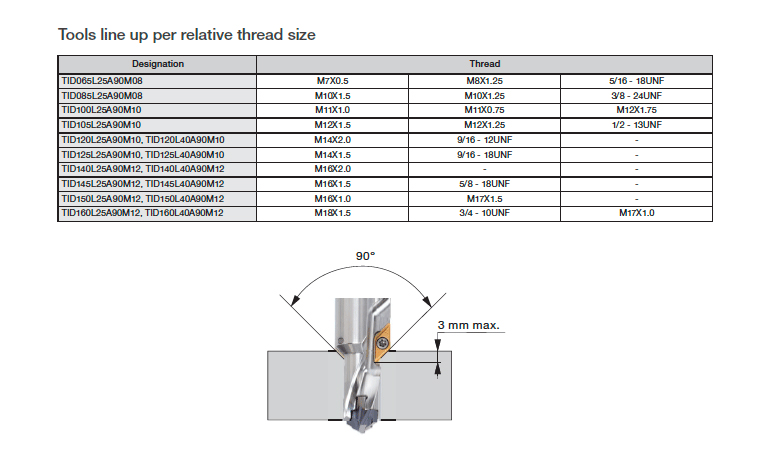

| Remarks | For tools line up per relative thread size, click on "More Info". |
Shipping Info
Weight per item
0.0000
