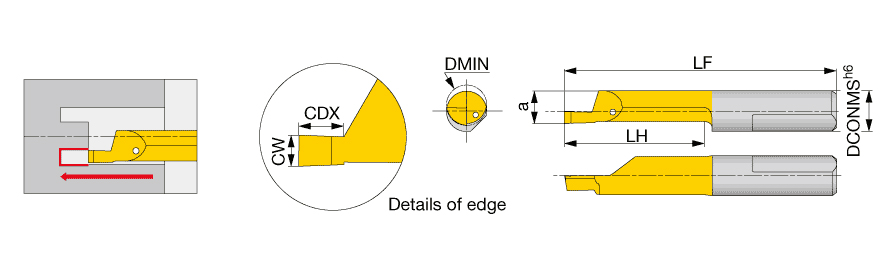

JBFR07200250-D150 SH725
| Connection Diameter Machine Side (DCONMS) | 7 mm | Front End Width (a) | 5.9 mm |
| Minimum Bore Diameter (DMIN) | 15 mm | Functional Width (WF) | 2.4 mm |
| Functional Length (LF) | 36 mm | Body Material | Carbide |
| Head Length (LH) | 20 mm | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Tool Type | Solid, Turning & Grooving |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Cutting Width (CW) | 2.5 mm |
| Application | | Face grooving | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid boring bars for face grooving | FamilyName | JBFR/L |
| Remarks | Corner radius is less than 0.1 mm. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Solid Boring Bars
FamilyName
JBFR/L
BrandName
Tungaloy
