JBTR04090010-D028 SH725

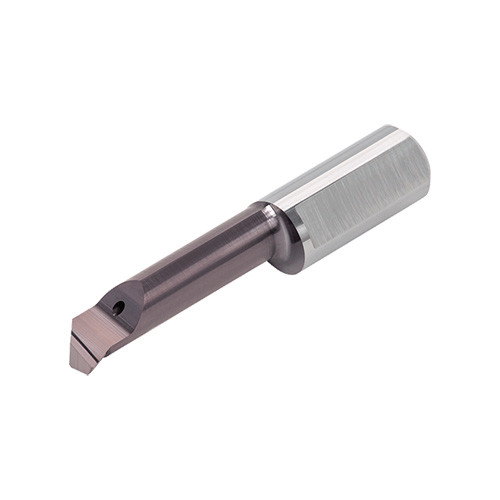

Solid boring bars for boring, profiling & chamfering

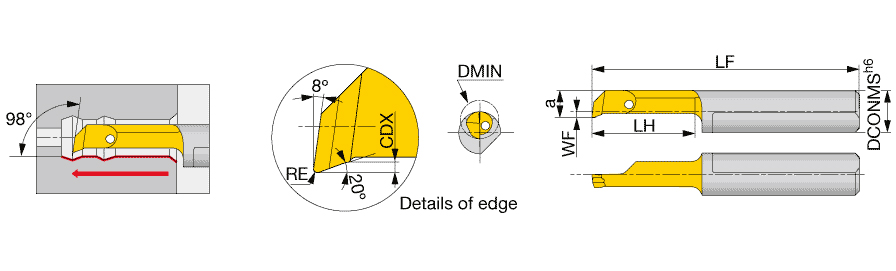

| Connection Diameter Machine Side (DCONMS) | 4 mm | Front End Width (a) | 2.6 mm |
| Minimum Bore Diameter (DMIN) | 2.8 mm | Functional Width (WF) | 0.9 mm |
| Functional Length (LF) | 25.5 mm | Body Material | Carbide |
| Head Length (LH) | 9 mm | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Radial (GAMF) | 20 Degrees |
| Coating | TiAlN | Tool Type | Solid Carbide Turn Tool |
| Grade | SH725 | Measurement Type | Metric |
| Application | | For Miniature machining | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid boring bars for boring, profiling & chamfering | FamilyName | JBTR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Solid Boring Bars
FamilyName
JBTR/L
BrandName
Tungaloy
