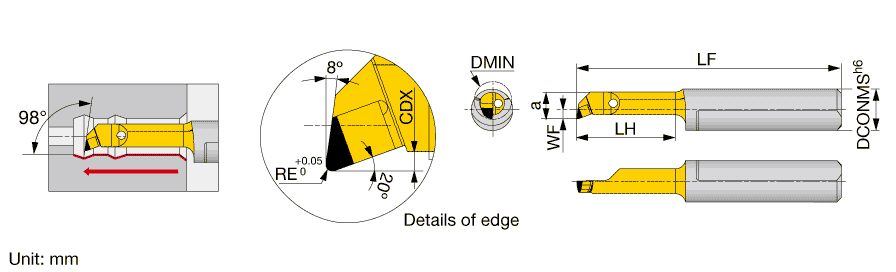

| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Hard Materials | |
| Minimum Bore Diameter (DMIN) | 5 mm | Front End Width (a) | 4.15 mm |
| Functional Length (LF) | 30 mm | Functional Width (WF) | 0.6 mm |
| Head Length (LH) | 14 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | PCBN |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | BX310 | Unit | M |
| Application | | For Miniature machining | |
Product Features
| Family Description | CBN brazed solid boring bar for boring, profiling and chamfering | FamilyName | JBTR-ST |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Solid Boring Bars
FamilyName
JBTR-ST
BrandName
Tungaloy
