E16R-SWLXR04-D180

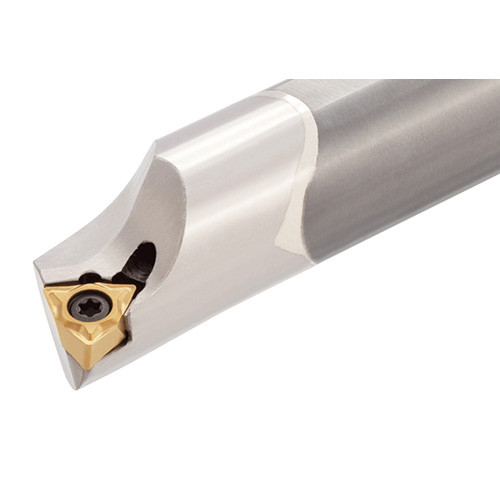

Screw-on boring bar for trigon insert with 6 edges

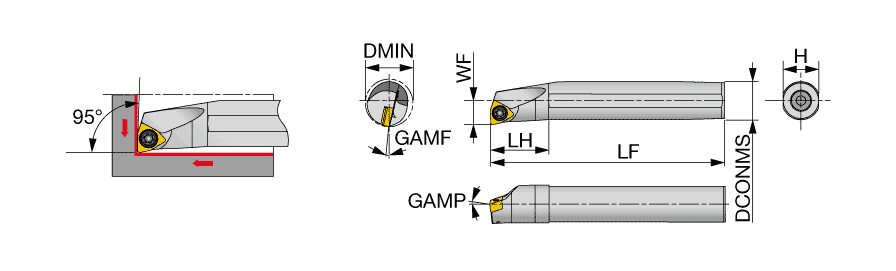

Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
Functional Length (LF) | 200 mm | Rake Angle Axial (GAMP) | -10 Degrees |
Head Length (LH) | 32 mm | Rake Angle Radial (GAMF) | -11 Degrees |
Shank Height (H) | 15 mm | Tool Type | TOOLHOLDERS - FOR BORING & INTERNAL PROFILING |
Functional Width (WF) | 9 mm | Body Material | Carbide |
Master Insert Identification (MIID) | WXGU040304L | Measurement Type | Metric |
Minimum Bore Diameter (DMIN) | 18 mm | Unit | M |


Product Features
Family Description | Screw-on boring bar for trigon insert with 6 edges | FamilyName | A/E-SWLXR/L |
Remarks | The right hand insert (R) is used for the left hand toolholders (SWLXL04 D**), and the left hand insert (L) is used for the right hand toolholders (SWLXR04 D**). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
COO | JAPAN |
Shipping Info
Weight per item
0.5330
Name
Indexable Internal Turning Tools
FamilyName
A/E-SWLXR/L
BrandName
Tungaloy
