A05-STUPL7-D07
Screw-on boring bar, for posi triangle insert with 11 deg clearance

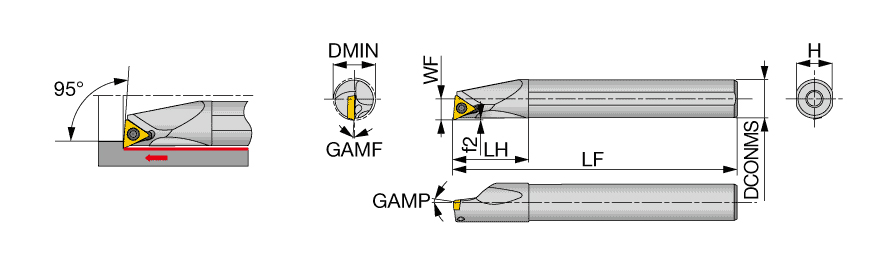

| Connection Diameter Machine Side (DCONMS) | 0.313″ | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 5″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 5/8″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Shank Height (H) | 0.288″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | TPGT731 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.438″ | Unit | I |
Product Features
| Family Description | Screw-on boring bar, for posi triangle insert with 11 deg clearance | FamilyName | A/E-STUPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable Internal Turning Tools
FamilyName
A/E-STUPR/L
BrandName
Tungaloy
