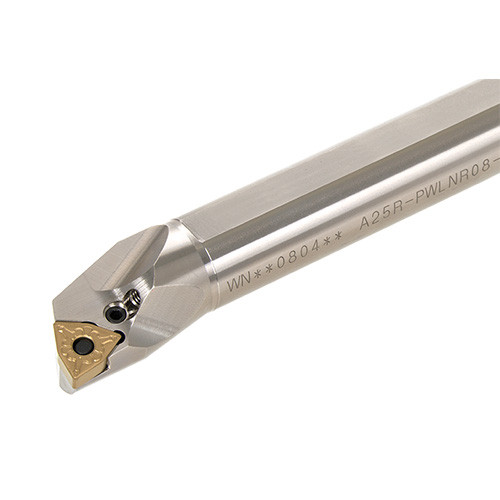

A16M-PWLNR06-D200
Lever-lock boring bar for negative trigon insert

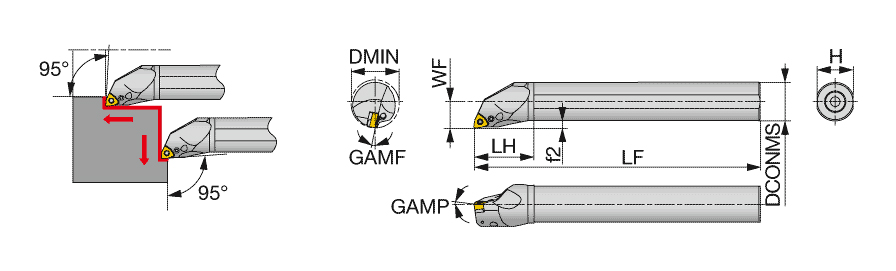

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 150 mm | Rake Angle Axial (GAMP) | -8 Degrees |
| Head Length (LH) | 32 mm | Rake Angle Radial (GAMF) | -17 Degrees |
| Shank Height (H) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG060408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Unit | M |
Product Features
| Family Description | Lever-lock boring bar for negative trigon insert | FamilyName | A-PWLNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2270
Name
Indexable Internal Turning Tools
FamilyName
A-PWLNR/L
BrandName
Tungaloy
