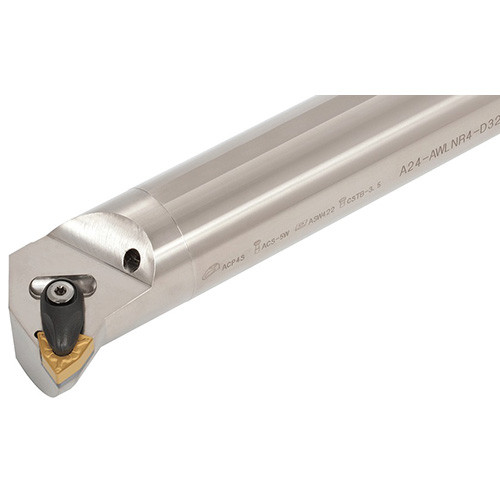

A25R-AWLNL08-D320
Double-clamp boring bar, for negative trigon insert

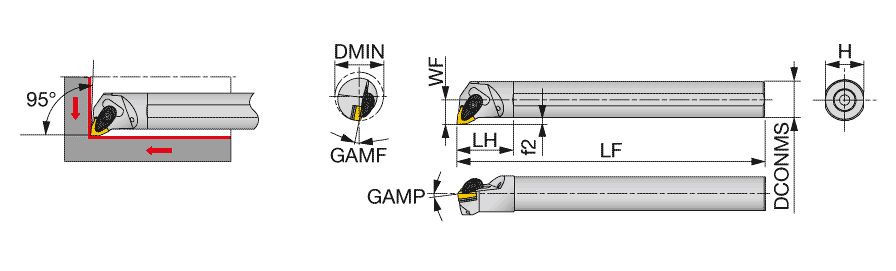

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 200 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 45 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG080408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm | Unit | M |
Product Features
| Family Description | Double-clamp boring bar, for negative trigon insert | FamilyName | A-AWLNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.6850
Name
Indexable Internal Turning Tools
FamilyName
A-AWLNR/L
BrandName
Tungaloy
