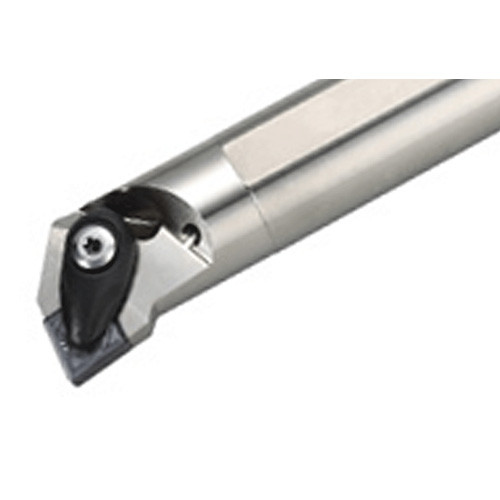

A32S-ACLNR12-D400
Double-clamp boring bar, for negative 80 deg rhombic insert

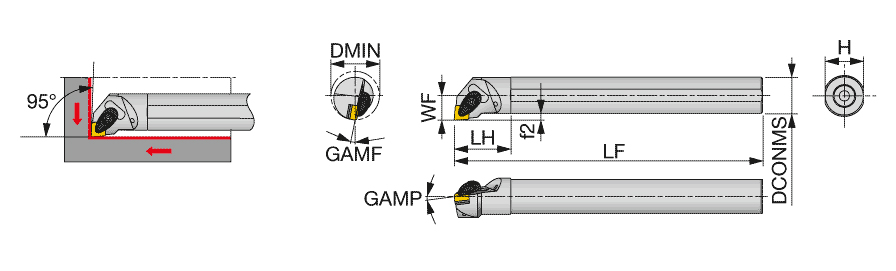

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 250 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 50 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 30 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNMG120408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 40 mm | Unit | M |
Product Features
| Family Description | Double-clamp boring bar, for negative 80 deg rhombic insert | FamilyName | A-ACLNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.3140
Name
Indexable Internal Turning Tools
FamilyName
A-ACLNR/L
BrandName
Tungaloy
