A10-SVJCR2-D16

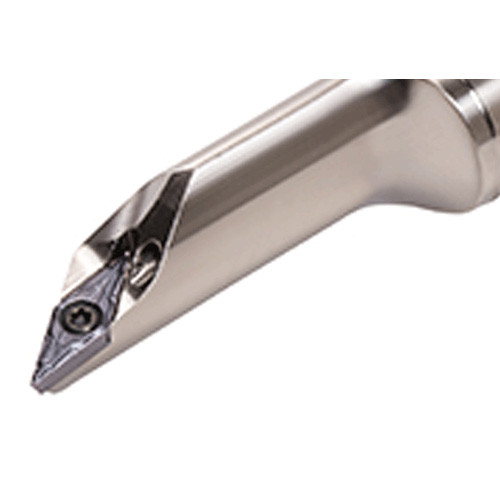

Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance

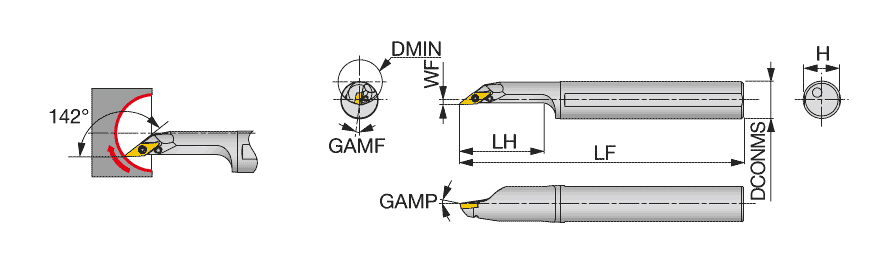

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 7″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Head Length (LH) | 1-3/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Height (H) | 0.6″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.156″ | Body Material | Steel |
| Master Insert Identification (MIID) | VCMT221 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1″ | Unit | I |
Product Features
| Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance | FamilyName | A-SVJCR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVJCL** type), and the left hand insert (L) is used for the right hand toolholders (SVJCR** type). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.5644
Name
Indexable Internal Turning Tools
FamilyName
A-SVJCR/L
BrandName
Tungaloy
