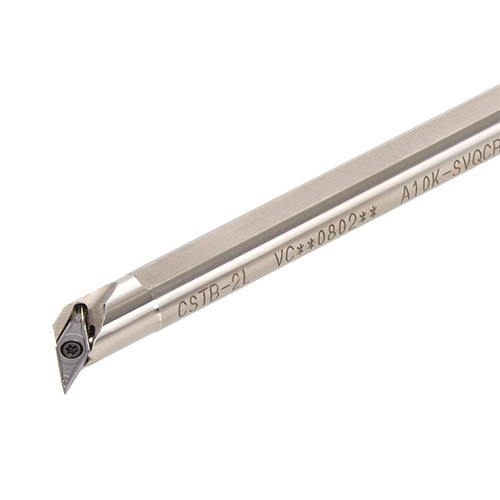

E10M-SVQCR08-D135
Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance

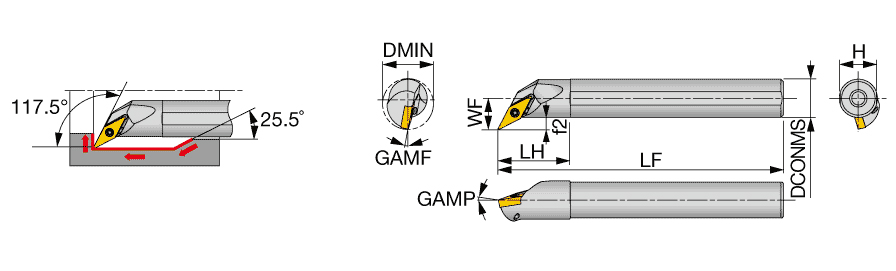

Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
Functional Length (LF) | 150 mm | Rake Angle Axial (GAMP) | -5 Degrees |
Head Length (LH) | 25 mm | Rake Angle Radial (GAMF) | -8 Degrees |
Shank Height (H) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
Functional Width (WF) | 8 mm | Body Material | Carbide |
Master Insert Identification (MIID) | VCMT080204 | Measurement Type | Metric |
Minimum Bore Diameter (DMIN) | 13.5 mm | Unit | M |


Product Features
Family Description | Screw-on boring bar, for posi 35 deg rhombic insert with 7 deg clearance | FamilyName | A/E-SVQCR/L |
Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SVQCL** type), and the left hand insert (L) is used for the right hand toolholders (SVQCR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
COO | JAPAN |
Shipping Info
Weight per item
0.1670
Name
Indexable Internal Turning Tools
FamilyName
A/E-SVQCR/L
BrandName
Tungaloy
