E20S-STUPR13-D220

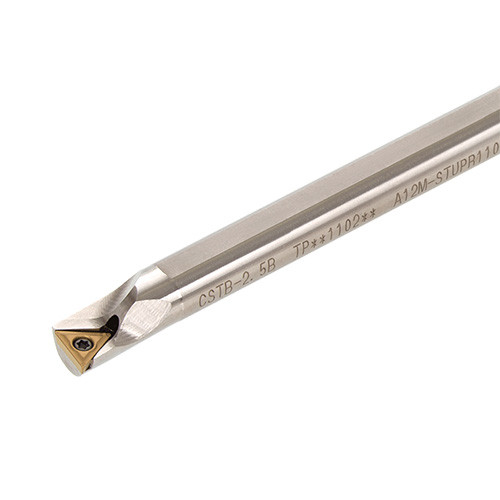

Screw-on boring bar, for posi triangle insert with 11 deg clearance

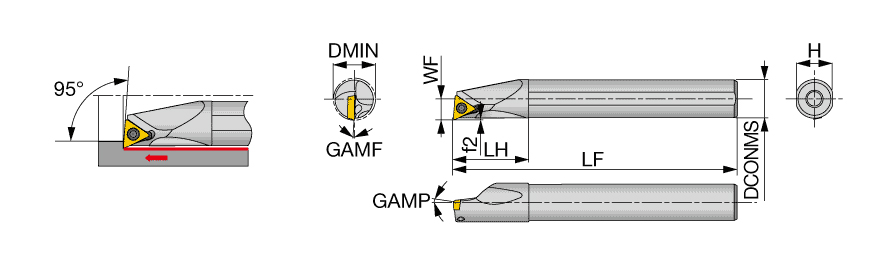

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 250 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 36 mm | Rake Angle Radial (GAMF) | -2 Degrees |
| Shank Height (H) | 18 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | TPGT130304 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 22 mm | Unit | M |
Product Features
| Family Description | Screw-on boring bar, for posi triangle insert with 11 deg clearance | FamilyName | A/E-STUPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.0180
Name
Indexable Internal Turning Tools
FamilyName
A/E-STUPR/L
BrandName
Tungaloy
