T50W-PCLNR12C
Tsuppari-Ichiban, Lever-lock boring bar, for Negative 80 deg rhombic insert

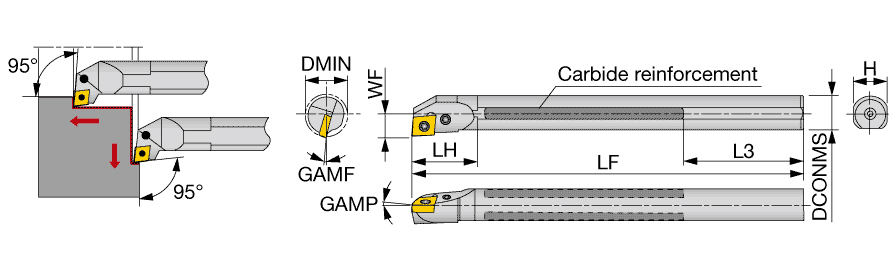

| Connection Diameter Machine Side (DCONMS) | 50 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 450 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 65 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 47 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 35 mm | Body Material | TSUPPARI |
| Master Insert Identification (MIID) | CNMG120408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 63 mm | Unit | M |
Product Features
| Family Description | Tsuppari-Ichiban, Lever-lock boring bar, for Negative 80 deg rhombic insert | FamilyName | T-PCLNR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PCLNL** type), and the left hand insert (L) is used for the right hand toolholders (PCLNR** type). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
6.5400
Name
Indexable Internal Turning Tools
FamilyName
T-PCLNR/L
BrandName
Tungaloy
