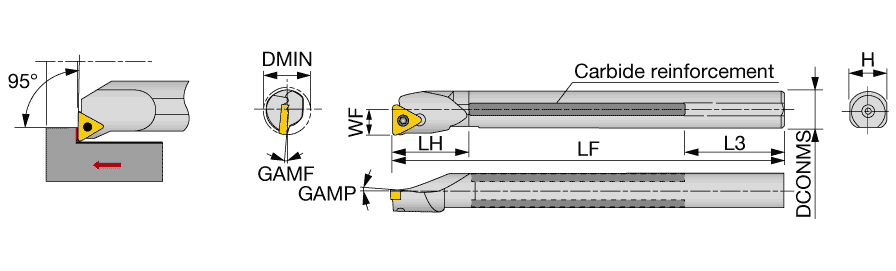

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 250 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 45 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | TSUPPARI |
| Master Insert Identification (MIID) | TPMT16T308 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 31 mm | Unit | M |
Product Features

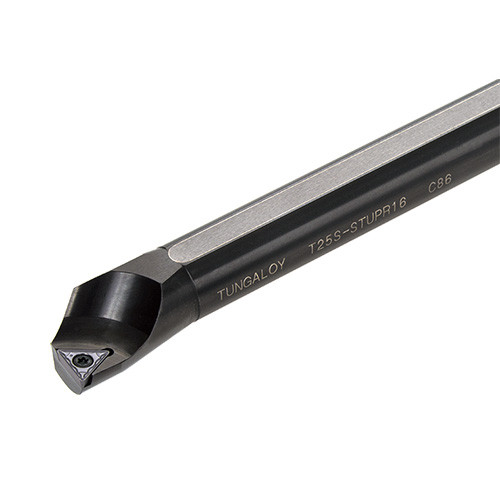

| Family Description | Tsuppari-Ichiban boring bar, for posi triangle insert with 11 deg clearance | FamilyName | T-STUPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.0220
Name
Indexable Internal Turning Tools
FamilyName
T-STUPR/L
BrandName
Tungaloy
