T25S-SDQCR11C

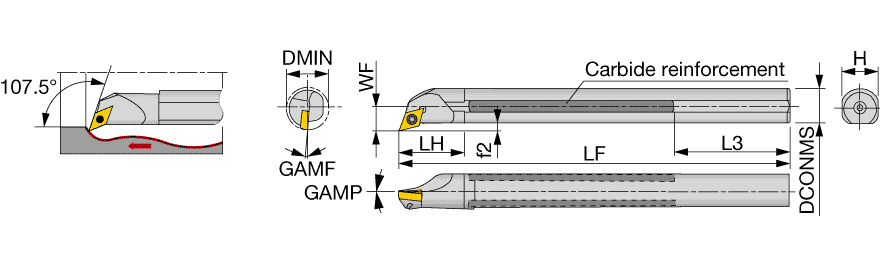

Tsuppari-Ichiban, Screw-on boring bar, for posi 55 deg rhombic insert with 7 deg clearance
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 250 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 40 mm | Rake Angle Radial (GAMF) | -4 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | TSUPPARI |
| Master Insert Identification (MIID) | DCMT11T308 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm | Unit | M |
Product Features
| Family Description | Tsuppari-Ichiban, Screw-on boring bar, for posi 55 deg rhombic insert with 7 deg clearance | FamilyName | T-SDQCR/L |
| Remarks | The hole of inserts conforms to ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SDQCL** type), and the left hand insert (L) is used for the right hand toolholders (SDQCR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.9280
Name
Indexable Internal Turning Tools
FamilyName
T-SDQCR/L
BrandName
Tungaloy
