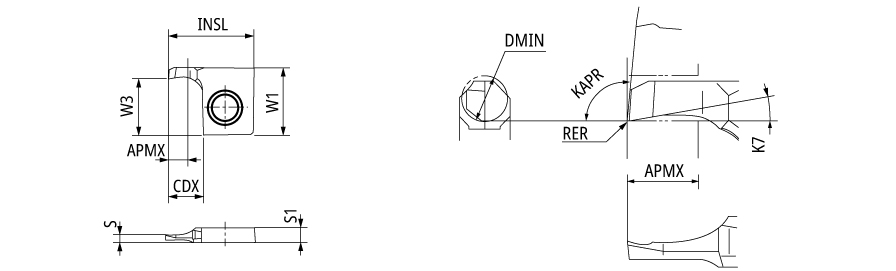

| Corner Radius (RE) | 0.05 mm | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 6 mm | Application | | Inserts for miniature | |
| Insert Thickness (S) | 2.5 mm | Measurement Type | Metric |
| Insert Length (INSL) | 15 mm | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 2.3 mm | Insert Width (W1) | 12 mm |
| Coating | TiCN | Unit | M |
| Grade | VM1 |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | LBMD-S Short type insert |
Shipping Info
Weight per item
0.0048
Name

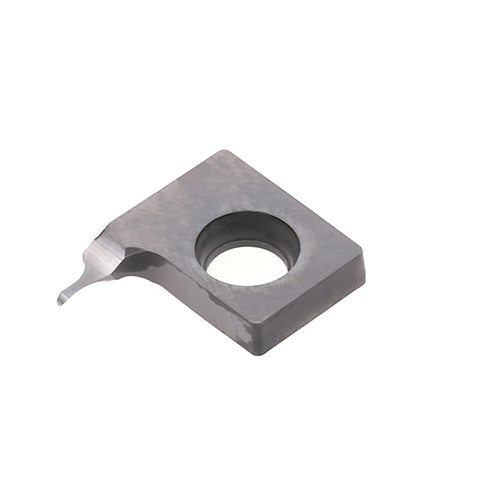

Groove/Turn Indexable Inserts
FamilyName
LBMD-S Short type insert
BrandName
NTK Cutting Tools
