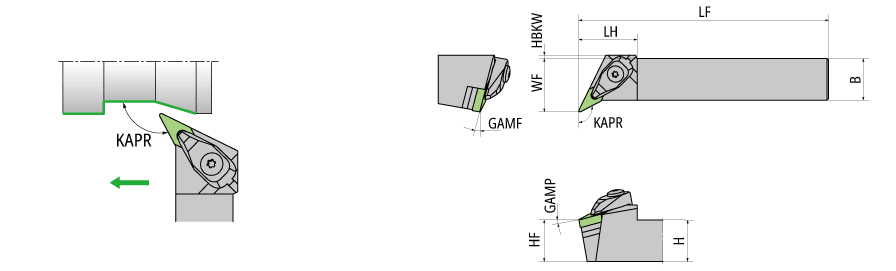

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | 10.0 deg |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 10.0 deg |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Application | | For 35 deg Rhombic insert | |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | WVPN/HVPN Multi Clamp Toolholders |
Shipping Info
Weight per item
0.7359
Name
General Indexable Turning Tools
FamilyName

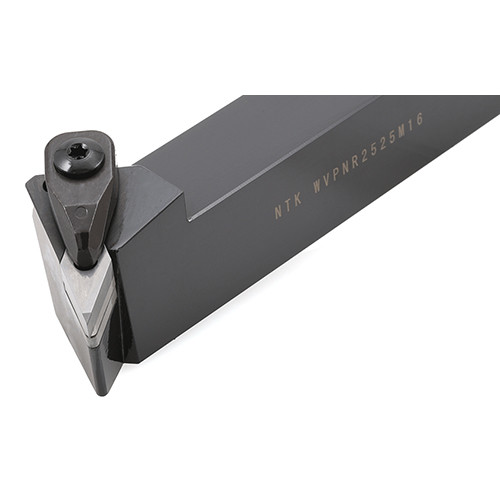

WVPN/HVPN Multi Clamp Toolholders
BrandName
NTK Cutting Tools
