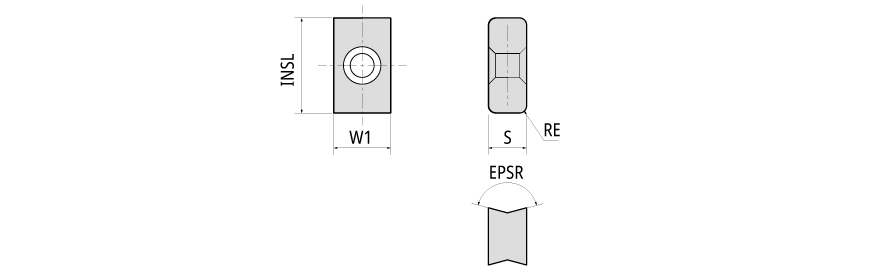

| Application | | Inserts for milling | | Clearance Angle Major (AN) | 0 Degrees |
| Insert Length (INSL) | 15.88 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Ceramic |
| Insert Width (W1) | 9.525 mm | Measurement Type | Metric |
| Insert Thickness (S) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 150 Degrees | Unit | M |
| Grade | SX6 |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | LNX type |
Shipping Info
Weight per item
0.0029
Name
Milling Indexable Inserts
FamilyName
LNX type
BrandName
NTK Cutting Tools
