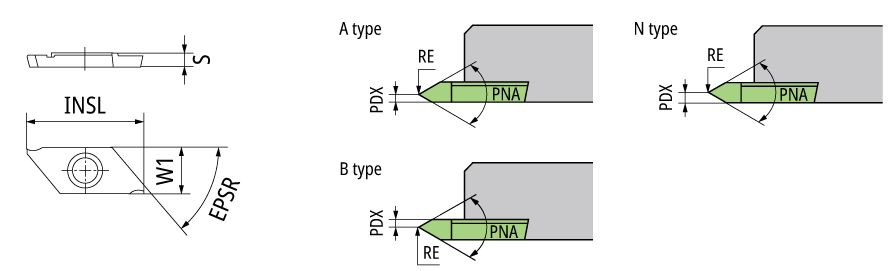

| Corner Radius (RE) | 0.05 mm | Thread Pitch Minimum (TPN) | 0.2 mm |
| Grade | ST4 | Thread Pitch Maximum (TPX) | 0.75 mm |
| Coating | CrAlN | Profile Included Angle (PNA) | 60 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Inserts for miniature | | Unit | M |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | TTP type insert for threading Right-handed |
Shipping Info
Weight per item
0.0037
Name

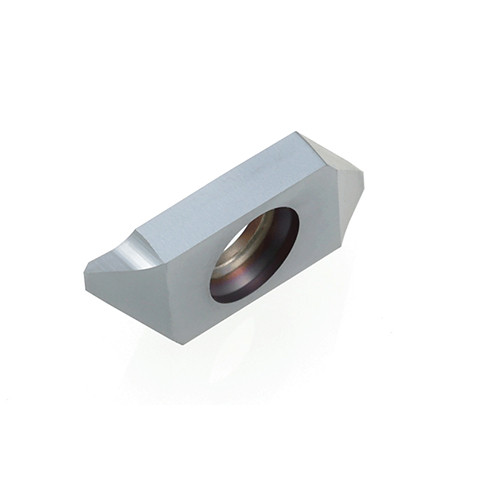

On-Edge Threading Indexable Inserts
FamilyName
TTP type insert for threading Right-handed
BrandName
NTK
