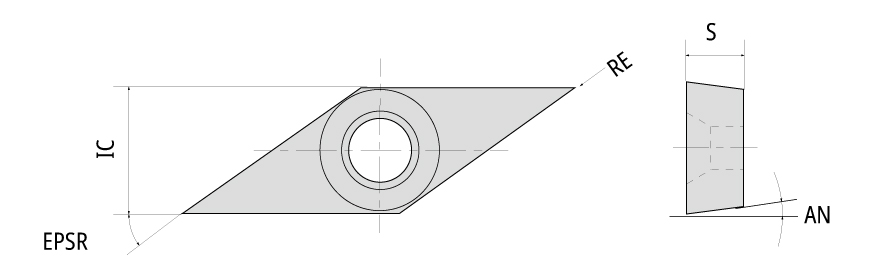

| Application | | Inserts for miniature | | Grade | PD1 |
| Corner Radius (RE) | 0.2 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Edge Effective Length (LE) | 3 mm |
| Cutting Edge Material | Cermet | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | VCMW type insert |
Shipping Info
Weight per item
0.0026
Name

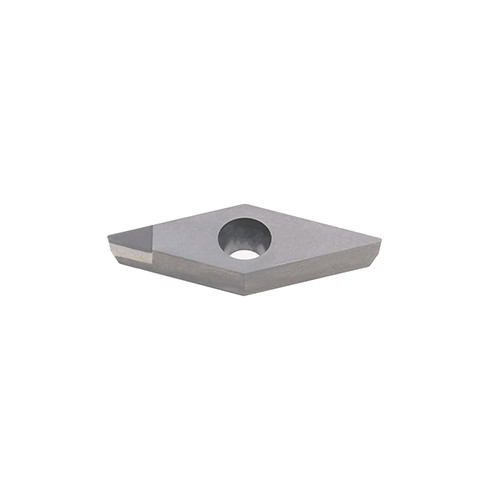

Turning Indexable Inserts
FamilyName
VCMW type insert
BrandName
NTK Cutting Tools
