| Application | | Ceramic and carbide insert | | Coating | TiCN |

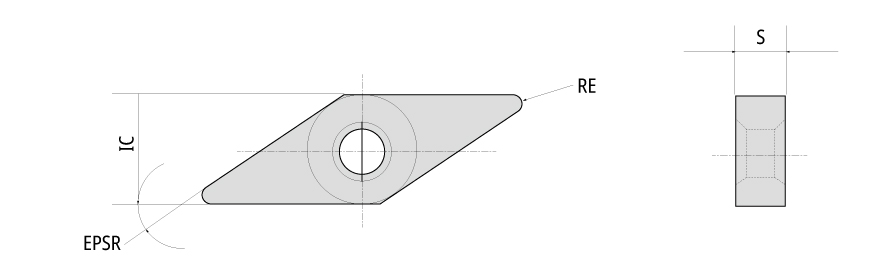

| Corner Radius (RE) | 0.2 mm | Grade | B5K |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Edge Effective Length (LE) | 2.6 mm |
| Cutting Edge Material | PCBN | Unit | M |
Product Features
| COO | S.Korea | BrandName | NTK Cutting Tools |
| FamilyName | VNGA type insert |
Shipping Info
Weight per item
0.0102
Name

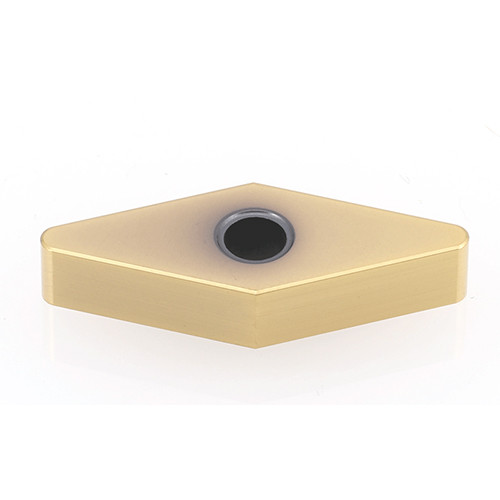

Turning Indexable Inserts
FamilyName
VNGA type insert
BrandName
NTK Cutting Tools
