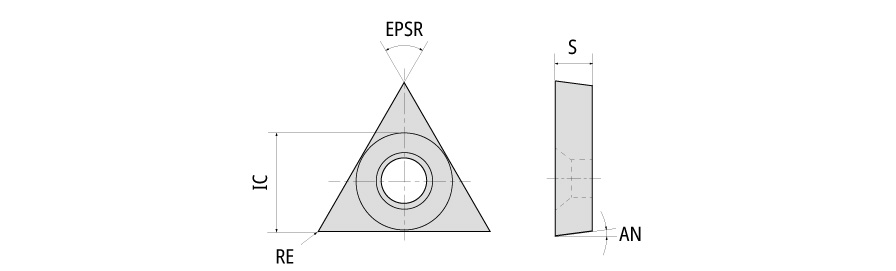

TPGH110304FRF1 ST4
| Applicable Material | | Stainless Steel | | Coating | CrAlN |
| Application | | Inserts for miniature | | Grade | ST4 |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| COO | S.Korea | BrandName | NTK Cutting Tools |
| FamilyName | TPGH-F1type insert |
Shipping Info
Weight per item
0.0020
Name
Turning Indexable Inserts
FamilyName
TPGH-F1type insert
BrandName
NTK Cutting Tools
