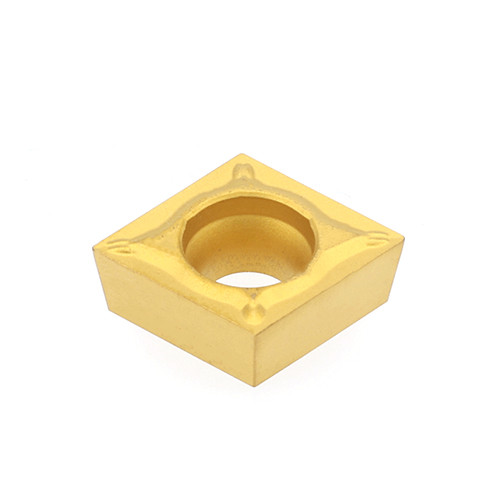

CCMT060204FNAM3 DM4
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Coating | TiAlN |
| Application | | Inserts for miniature | | Grade | DM4 |

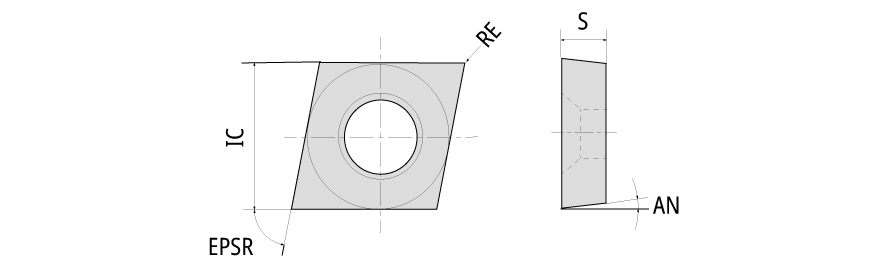

| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | CCMT type insert-NTK7905909 -M |
Shipping Info
Weight per item
0.002
Name
Turning Indexable Inserts
FamilyName
CCMT type insert-NTK7905909 -M
BrandName
NTK Cutting Tools
