| Application | | Ceramic and carbide insert | Inserts for miniature | | Coating | TiAlN |

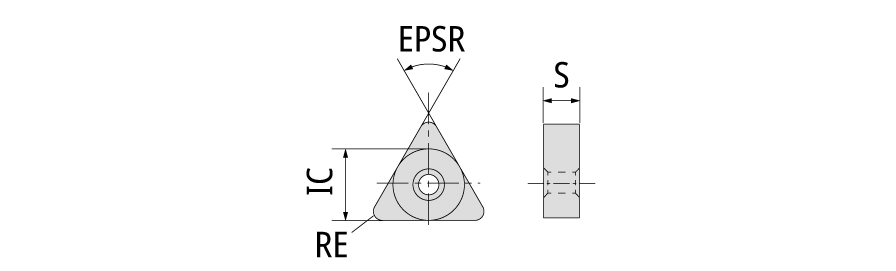

| Corner Radius (RE) | 0.4 mm | Grade | DM4 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | TN.G type insert |
Shipping Info
Weight per item
0.0074
Name

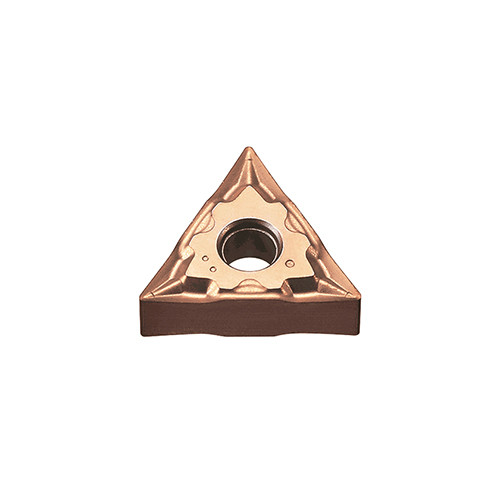

Turning Indexable Inserts
FamilyName
TN.G type insert
BrandName
NTK
